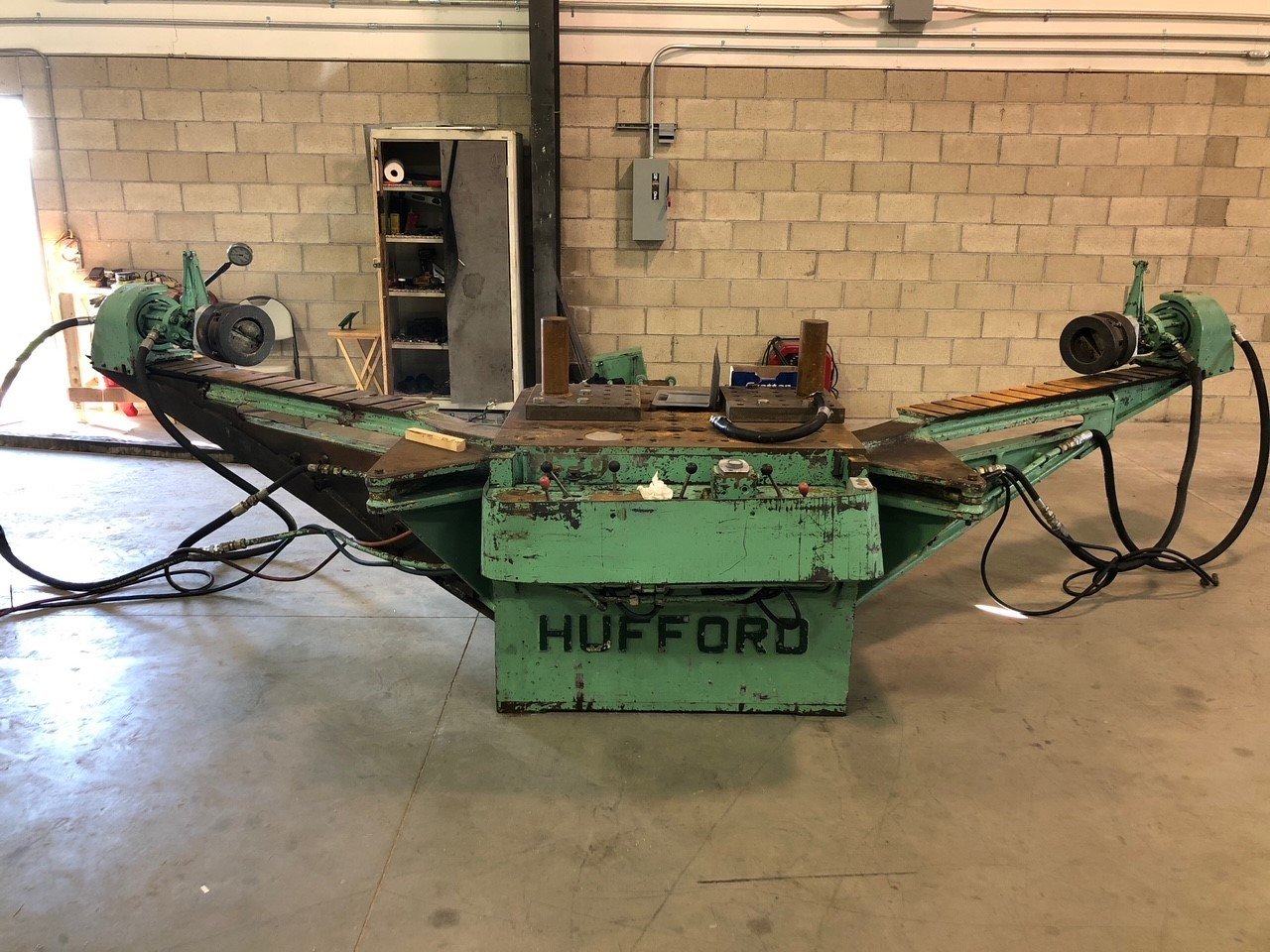

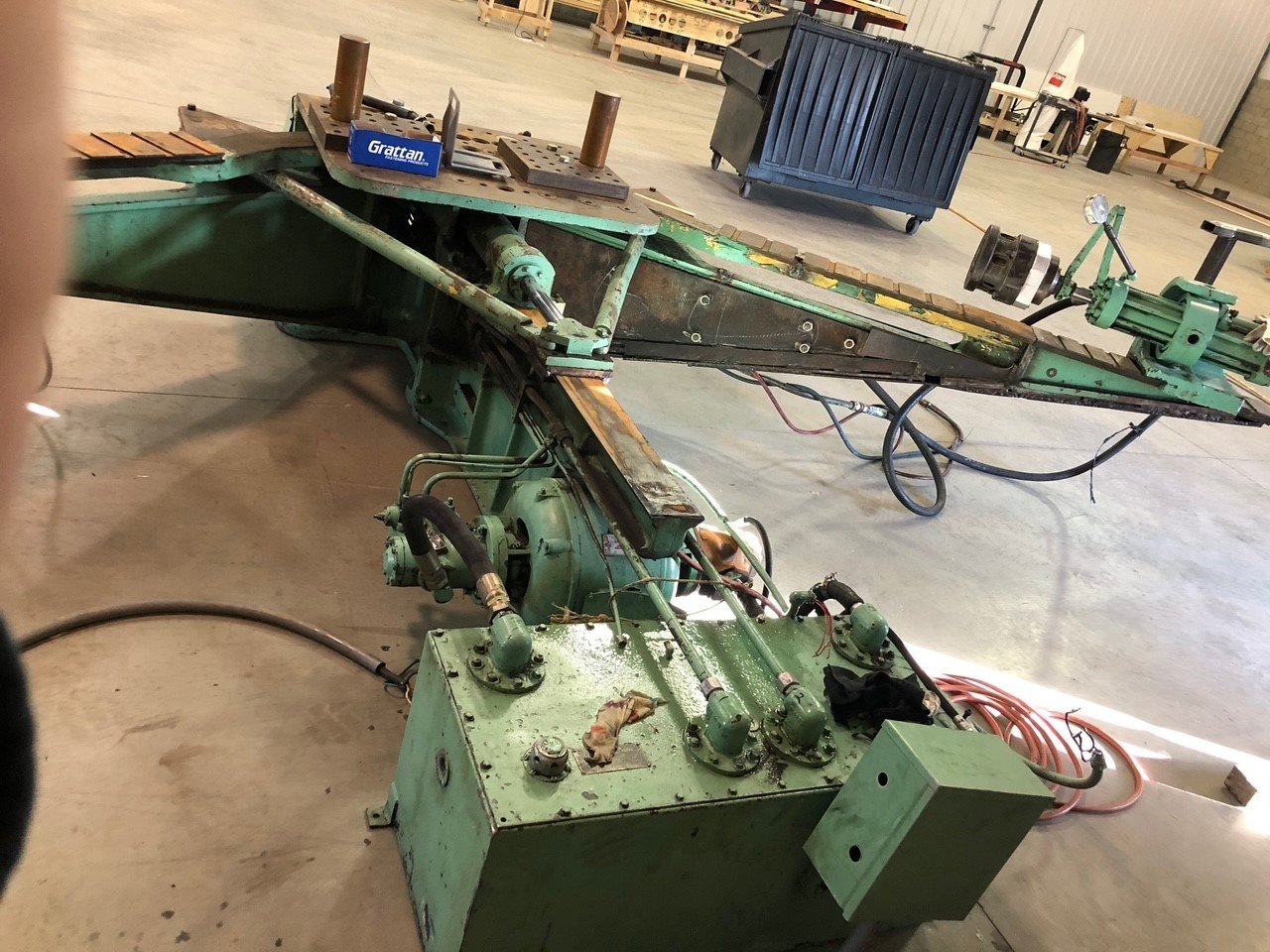

Hufford A-5 Extrusion Stretch Forming Press

Hufford A-5 Extrusion Stretch Forming Press

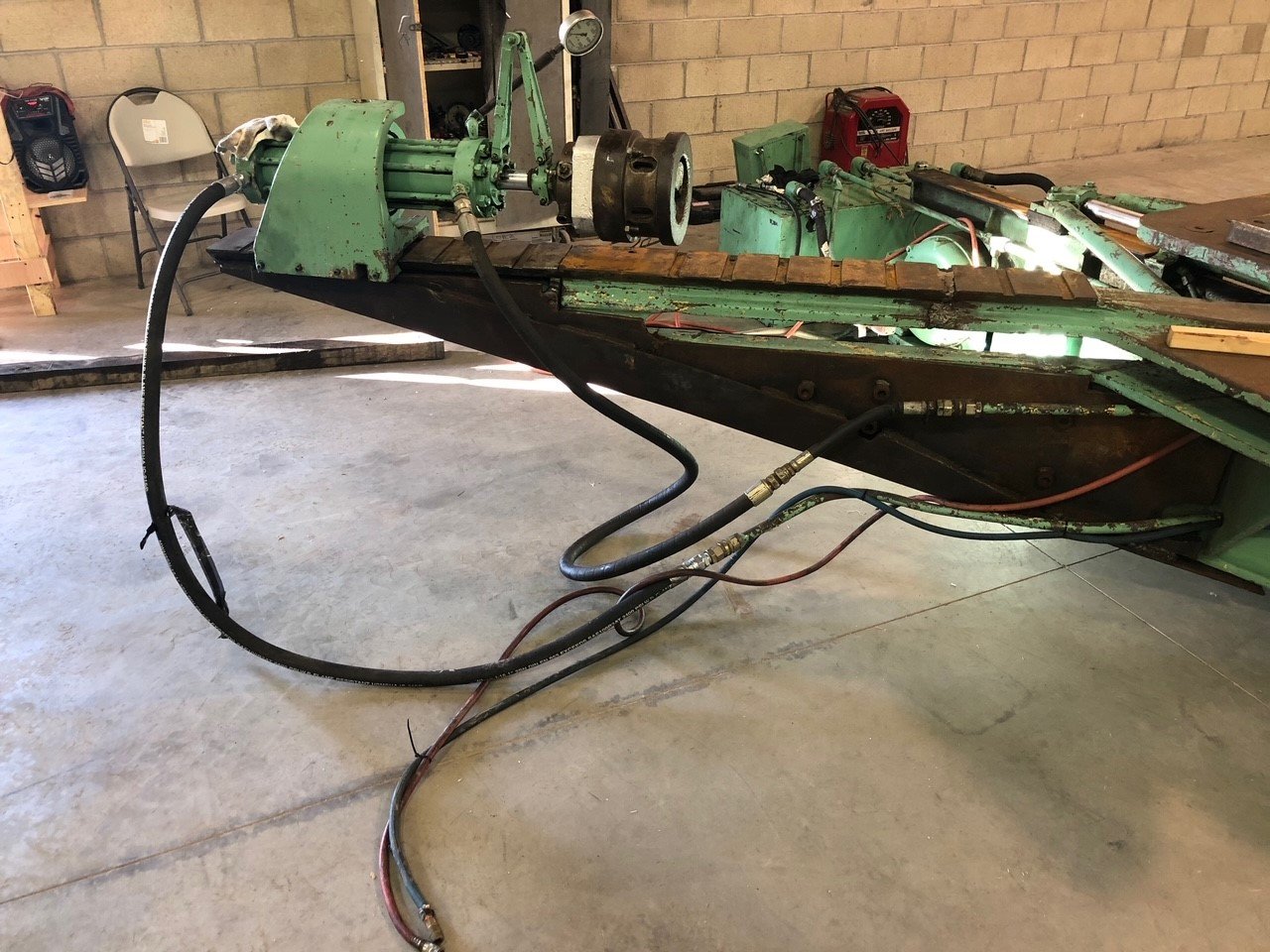

Long Arm Machine

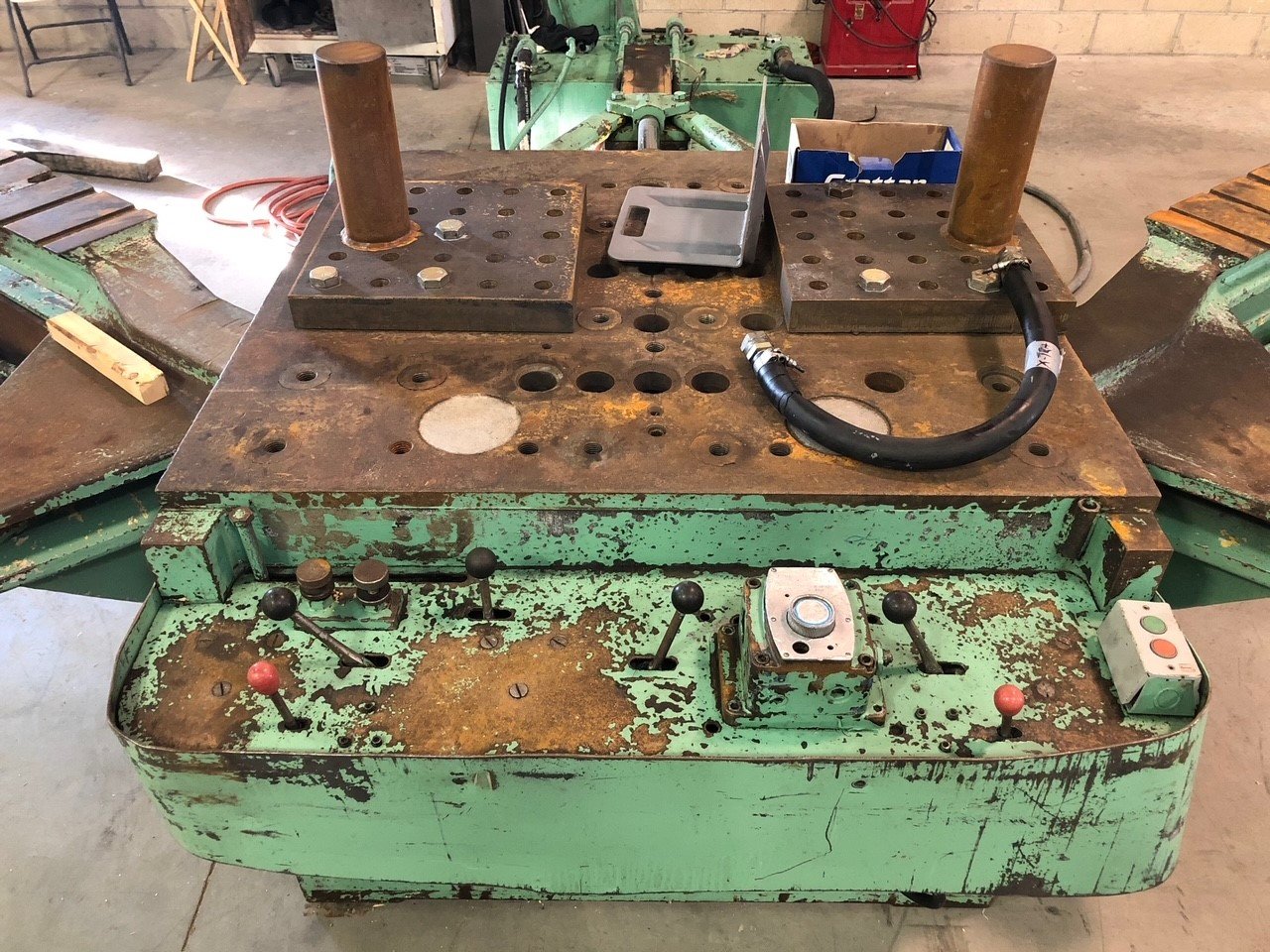

Capacity 12 Tons Table Dimensions 30” x 65”

Table Height 35.5”

Maximum Part Length Formed 219”

Minimum Part Length Formed 10”

Maximum Sheet Width Formed 10”

Maximum Die Height 20”

Maximum Die Length @ 180 Deg. 68”

Minimum Die Length @ 180 Deg.

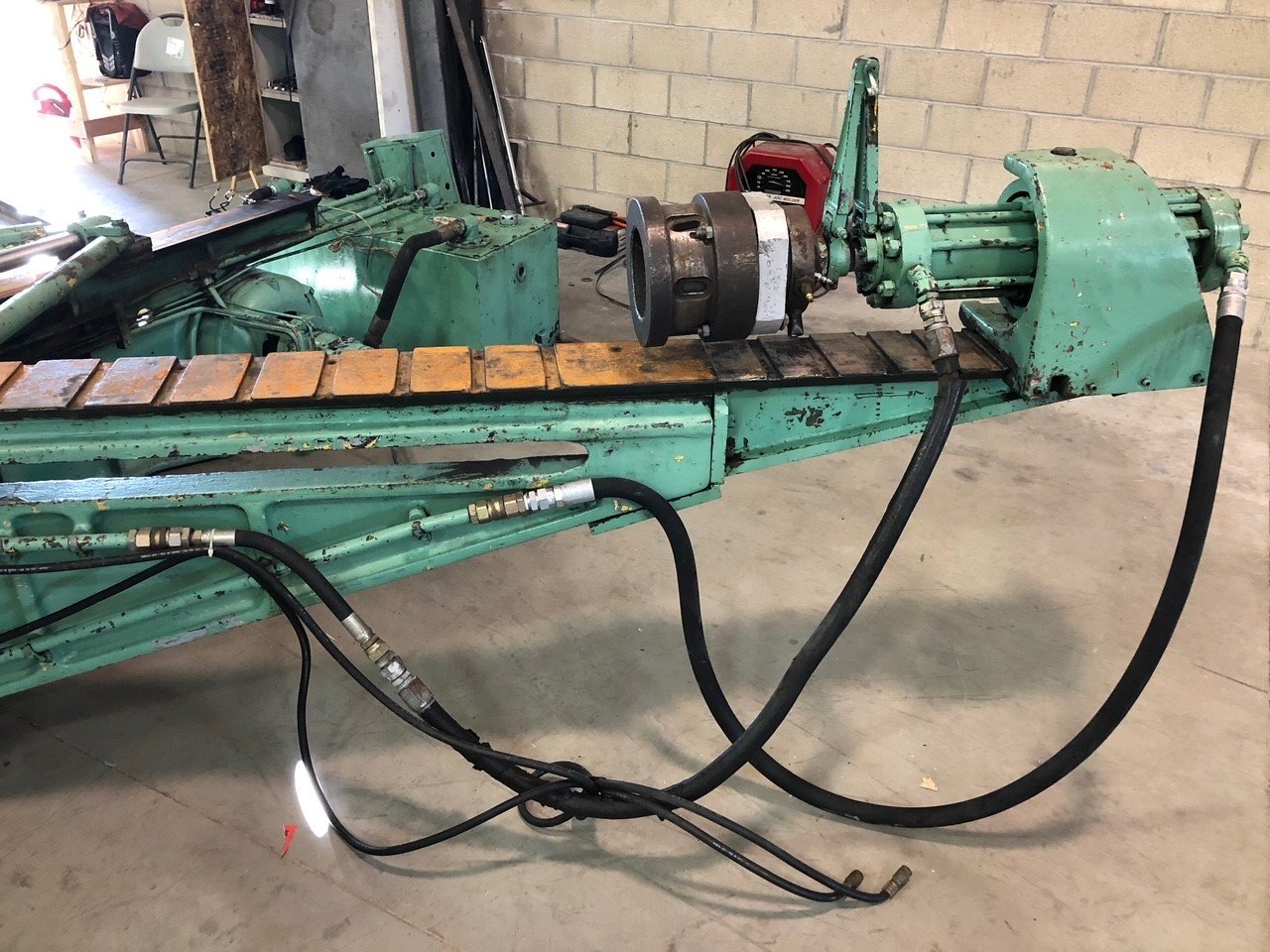

20” Tension Cylinder Stroke 18.5”

Operating Pressure Maximum 2,000 PSI

Overall Floor Space Required 23’ 6” x 14’11” F-B Overall Height 4’ 7”

Approximate Weight 14,000 lbs.

Price: $79,500.00

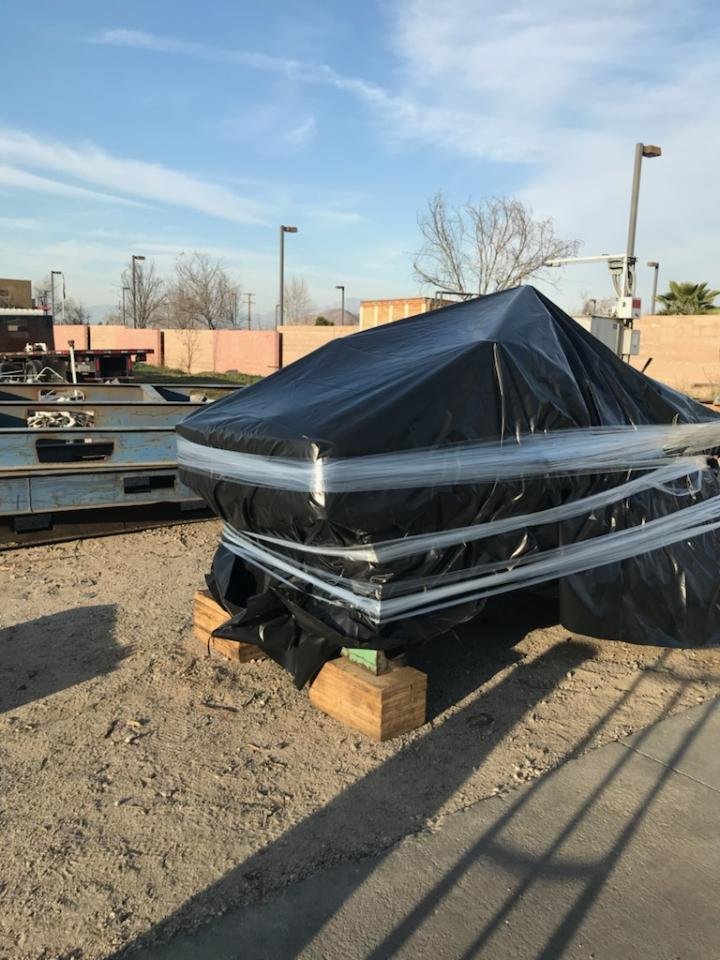

In storage. S. California
