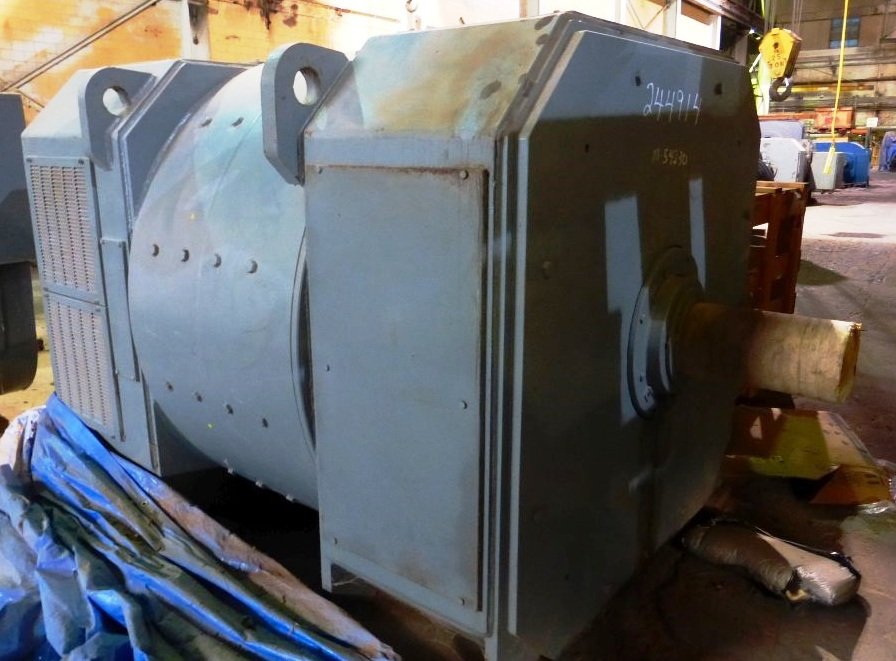

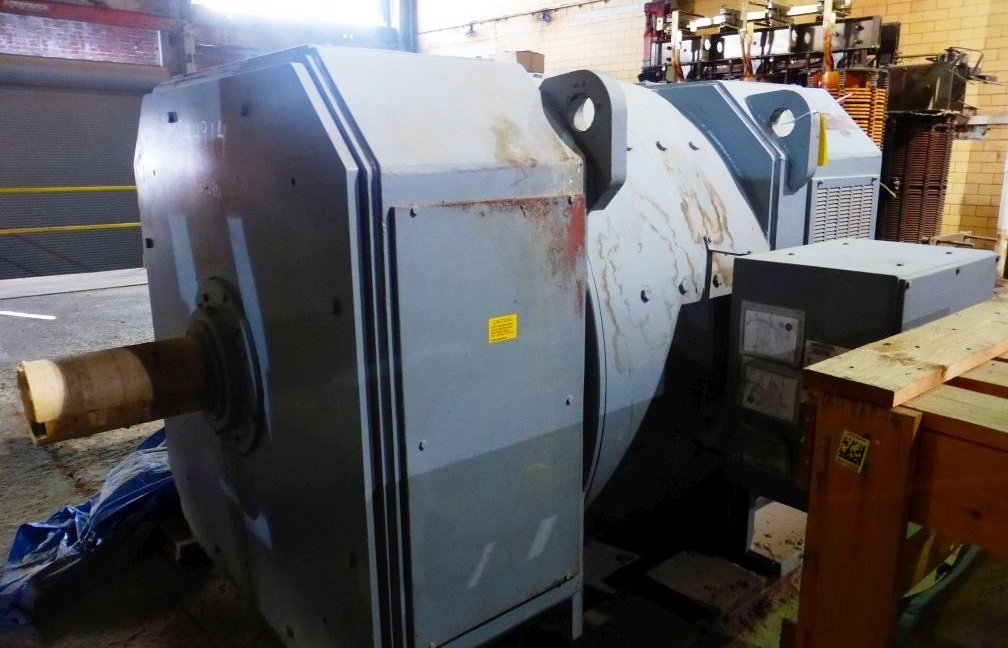

General Electric D-C Mill Motor Model 5CD685MA002C001 600 HP

General Electric D-C Mill Motor

Model 5CD685MA002C001

600 HP

275/1000 RPM

500 VDC Arm

960 Amps

Frame CD6985

Shunt Windings

Enclosure DPFG-SV

Shunt Field Amps 38.1 / 10.8

Shunt Field Ohms 4.32 (@ 25 C)

Sep. Excitation  240 / 120 VDC

Cont. Duty

Service Factor 1.15

Insulation Class F

Max. Ambient 40 C

DE Ball Bearing: 894A605 031

CE Ball Bearing: 894A605 031

Instruction Book: GEH 5359

Connection Diagram: 36B476290CB

Weight = 28,900 lbs. each

Load Charge: $8000

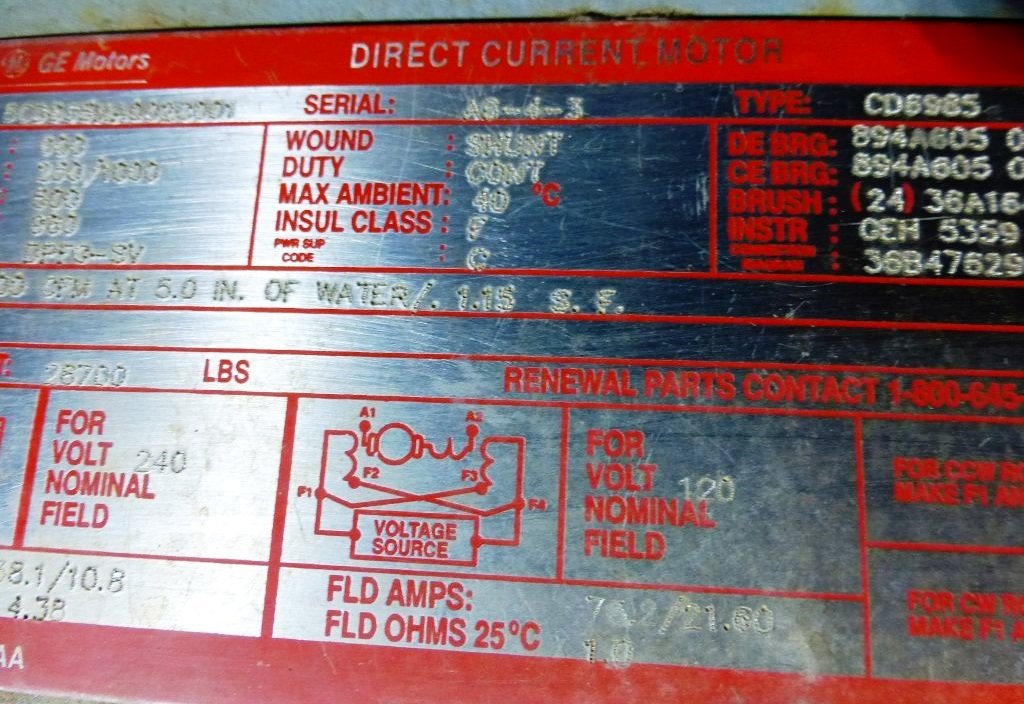

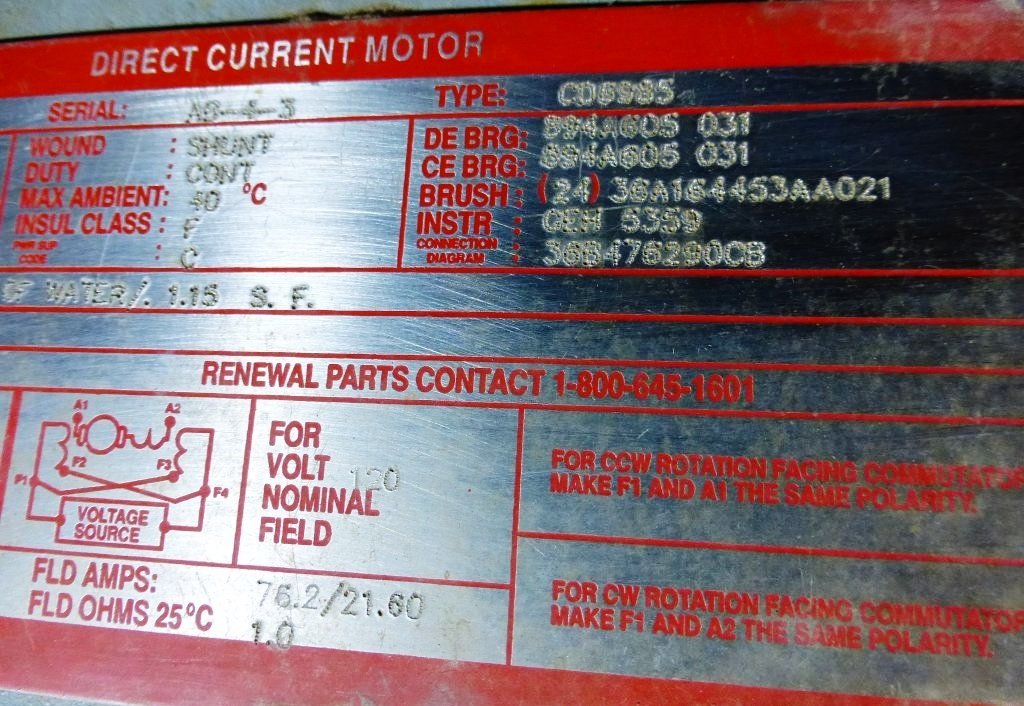

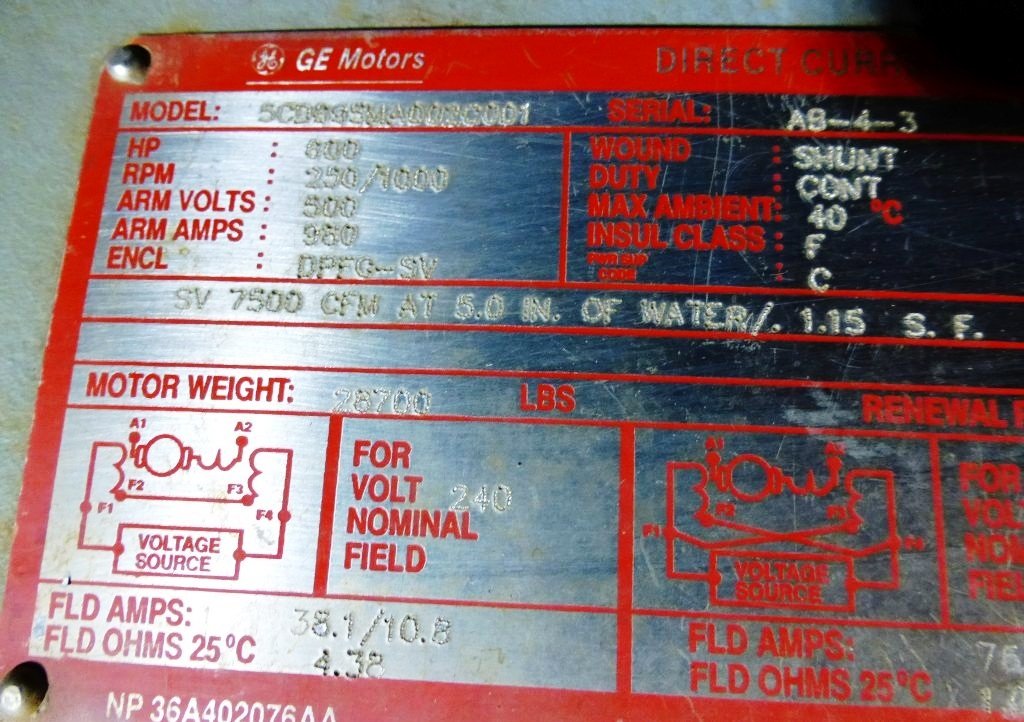

See attached Nameplate and Photos for details.

There are (2) avaialble.
